Parts Separating Systems

What are Parts Separating Systems

Parts separating systems are mechanical solutions used at the final stage of finishing processes such as vibratory finishing, barrel tumbling, or rotary processing. After the desired surface finish is achieved, the mixture of media and parts must be separated quickly to continue production cycles.
These systems operate using screening, vibration, or rotary motion, allowing smaller media to pass through openings while retaining larger parts. Proper separation not only improves efficiency but also prevents part damage and media loss during handling.

How Parts Separation Works

In most finishing operations, parts and media are processed together to achieve deburring, polishing, or cleaning. Once complete, the mixed load is directed toward a separation system.

• Vibratory systems use controlled motion to move material across a screen, allowing media to fall through while parts exit separately
• Rotary systems use a rolling action inside a cylindrical screen, improving separation for complex or high-volume loads
• Screen-based systems rely on precise hole sizes to ensure only media passes through while parts are retained

Efficient separation is essential to avoid extended cycle times and maintain consistent finishing quality.

Types of Parts Separating Systems

Parts separating systems are designed to meet different production and process requirements:

• Vibratory Screen Separators – Provide precise and controlled separation using vibration, ideal for consistent results
• Tubular Rotary Separators – Suitable for continuous and high-volume operations, especially where parts may trap media
• Flat Deck Screen Systems – Used for batch processing and smaller production runs
• Manual Separation Systems – Cost-effective solutions for low-volume or flexible operations
• Integrated Machine Separators – Built directly into finishing equipment for seamless operation

Subcategories of Parts Separating Systems

This category includes specialized solutions designed for different operational needs:

FSS Series Shaker Screeners

FSS Series shaker screeners use vibratory motion to move the media and parts mixture across a screening surface. This allows efficient separation while maintaining a steady flow of material.
These systems are well-suited for operations requiring consistent throughput and controlled separation accuracy.

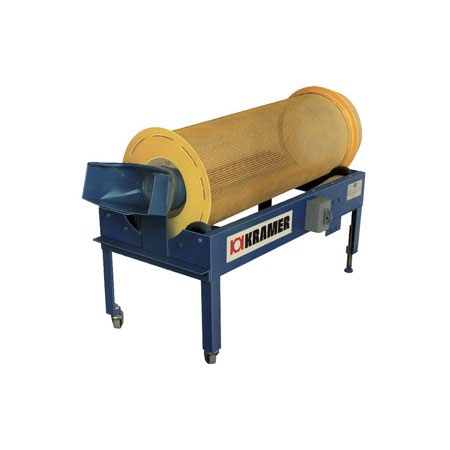

TRS Series Tubular Rotary Screen Separators

TRS Series systems utilize a rotating tubular screen that continuously turns the load. This rolling action helps dislodge media trapped in cavities or complex part geometries, making it highly effective for high-volume and continuous production environments.

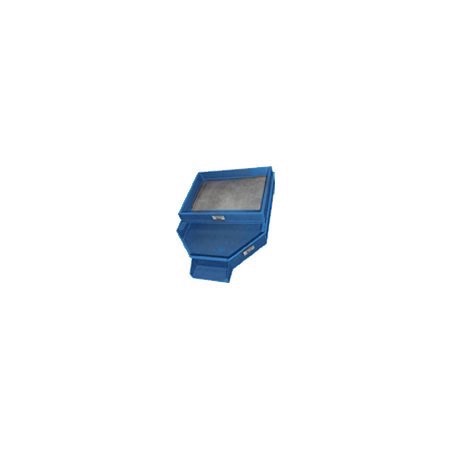

Catch Pans and Screens (Manual Systems)

Catch pans and manual screen systems provide a simple and flexible solution for separating parts and media. These systems are commonly used for smaller batches, maintenance operations, or as support systems alongside automated equipment.

Applications

Parts separating systems are widely used in:

• Vibratory finishing and mass finishing processes
• Deburring, polishing, and cleaning operations
• Surface preparation prior to coating or plating
• Metal, plastic, and composite component finishing
• Automated and high-volume production lines

Typical Uses

• Separating media from finished parts after processing
• Removing fines and worn media particles
• Improving cycle time and operational efficiency
• Supporting continuous finishing workflows
• Preventing part damage during unloading

Benefits of Parts Separating Systems

• Reduces manual labor and handling time
• Improves production speed and throughput
• Ensures consistent and repeatable separation
• Minimizes media loss and contamination
• Protects parts from damage during separation
• Supports scalable and automated operations

Selection Considerations

Selecting the right parts separating system depends on several key factors:

• Size relationship between parts and media
• Shape and geometry of components
• Type of finishing process (vibratory, rotary, barrel)
• Production volume and throughput requirements
• Desired level of automation
• Screen size and separation accuracy

Choosing the correct system ensures efficient separation, improved process control, and long-term operational reliability.

Process Optimization Insight

Efficient separation directly impacts overall finishing performance. Faster separation reduces cycle time, prevents bottlenecks, and keeps media within the system for reuse. Proper screen selection and system configuration also help maintain consistent finishing quality and reduce operational costs.

Frequently Asked Questions (FAQs)

Q1. Why are parts separating systems important in finishing processes?

Ans: They ensure fast and efficient separation of media and parts, reducing downtime and improving overall production efficiency.

Q2. What is the most common separation method?

Ans: Screen-based separation using vibration or rotary motion is the most widely used method in mass finishing.

Q3. Can separation be integrated into finishing machines?

Ans: Yes, many systems include built-in separators to reduce handling and improve workflow efficiency.

Q4. What happens if separation is not done properly?

Ans: Improper separation can lead to part damage, media loss, and increased cycle times.

Q5. How do I choose the right separator?

Ans: It depends on part size, media type, production volume, and the finishing process being used.
Not sure which parts separating system is right for your process?
Contact Kramer Industries for expert guidance and customized solutions tailored to your finishing requirements.
