HBC Series Centrifugal Barrel Finishers

High-Energy Mass Finishing for Precision Deburring and Polishing

The HBC Series Centrifugal Barrel Finishers deliver some of the fastest and most precise mass finishing results available in the industry. Designed for high-energy deburring, polishing, radiusing, and surface refinement, these machines provide dramatically shorter process cycles compared to traditional vibratory finishing systems.

Unlike conventional vibratory tumblers that rely on relatively slow media movement, centrifugal barrel finishing generates extremely high G-forces inside rotating barrels. This increased energy forces media to act more aggressively against parts, producing consistent and repeatable results in a fraction of the time. In many applications, centrifugal barrel finishing can process parts up to 10 times faster than vibratory systems while maintaining tight dimensional control and uniform finishes.

The HBC Series is ideal for manufacturers requiring precision finishing for complex or high-value parts, particularly where consistent edge radiusing, burr removal, or polishing is critical.

How Centrifugal Barrel Finishing Works

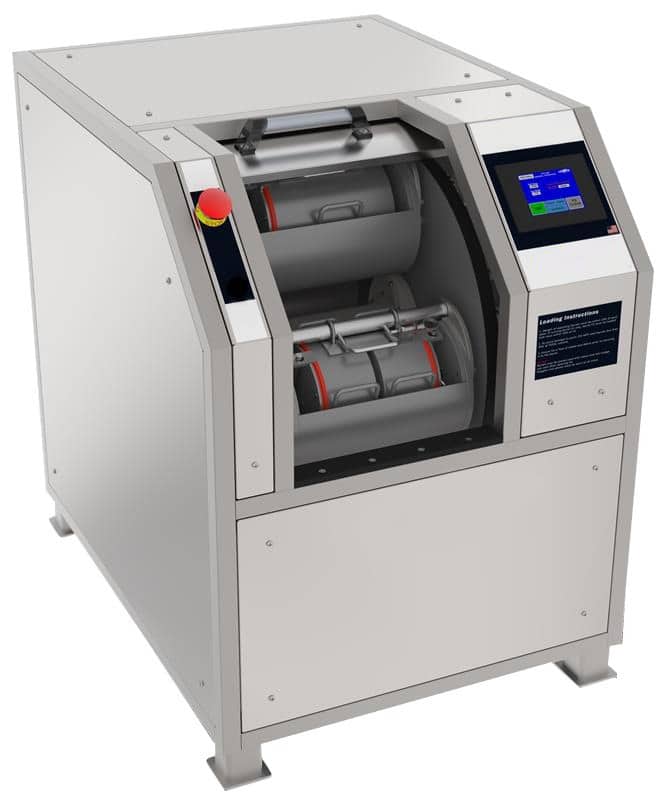

HBC Series machines use a vertical turret that holds multiple horizontal barrels. As the turret rotates, each barrel counter-rotates, creating high centrifugal forces that compress the finishing media and parts against the barrel wall.

This high-energy environment delivers several advantages:

• Rapid deburring and edge radiusing
• Highly consistent finishing results
• Controlled material removal
• Reduced process times
• Ability to isolate parts to prevent part-on-part contact

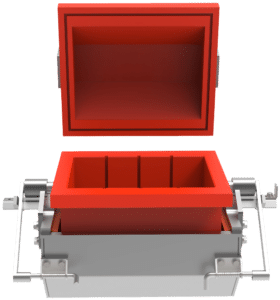

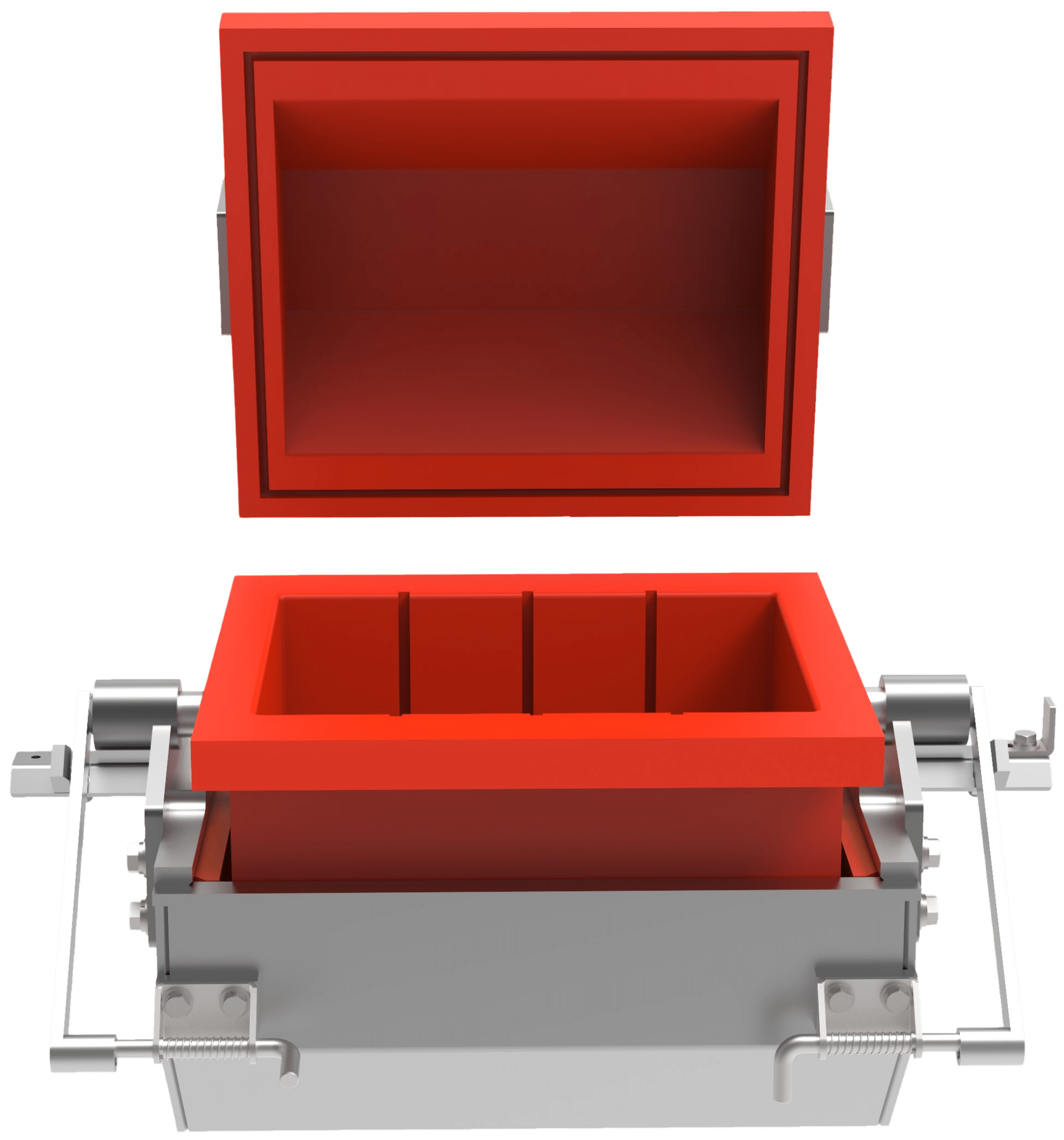

Many HBC models allow barrels to be divided into compartments, enabling delicate or precision components to be processed individually. This is particularly valuable when finishing medical, aerospace, and precision machined components.

HBC Series Model Overview

Specifications may vary depending on configuration and automation options.

Advantages of the HBC Series

Dramatically Faster Processing

High-energy centrifugal action allows parts to be processed significantly faster than with vibratory finishing systems. Faster cycle times increase throughput while reducing labor and equipment footprint.

Exceptional Process Control

Integrated PLC and touchscreen controls allow operators to store and recall finishing processes, ensuring repeatable results from batch to batch.

Flexible Batch Processing

Removable barrel liners and modular barrel designs allow operators to prepare multiple batches while the machine is running, minimizing downtime between cycles.

Precision Finishing for Critical Components

The ability to divide barrels into multiple compartments enables processing of delicate or high-value parts without risk of part-on-part damage.

Reduced Media and Compound Consumption

Smaller barrel volumes and efficient media movement often reduce overall media and compound usage compared to traditional tumbling processes.

Typical Applications

The HBC Series is widely used in industries requiring precise and repeatable surface finishing.

Common applications include:

• Medical device components
• Dental implants and instruments
• Aerospace machined components
• Precision turned parts
• Automotive components
• Electronics and connector parts
• Additive manufacturing post-processing
• Small mechanical assemblies

Processes performed include:

• Deburring
• Edge radiusing
• Surface smoothing
• Polishing and bright finishing
• Descaling
• Surface preparation prior to coating

HBC Series Design Features

HBC Series machines incorporate heavy-duty construction and operator-friendly controls to support demanding production environments.

Key features include:

• High-energy centrifugal barrel finishing design
• PLC and touchscreen process controls
• Programmable process storage for repeatability
• Removable barrel liners for fast loading and unloading
• Variable speed operation for process flexibility
• Integrated safety features including door interlocks and emergency stop
• Heavy-duty drive systems for long service life
• Stainless steel construction for corrosion resistance
• Optional automated media and compound systems on larger models

These features allow manufacturers to implement precise finishing processes while maintaining simple and reliable machine operation.

When to Choose Centrifugal Barrel Finishing

Centrifugal barrel finishing systems like the HBC Series are often the best solution when:

• Precision edge radiusing is required
• Process times must be minimized
• Part-to-part consistency is critical
• Parts cannot contact each other during finishing
• High-value or delicate components are being processed

While vibratory finishing remains effective for many general deburring applications, centrifugal barrel finishing excels when speed, precision, and process control are the top priorities.

Work With Kramer to Configure the Right System

Selecting the correct centrifugal finishing system depends on part geometry, production volume, media selection, and process goals. Kramer Industries works with customers to determine the optimal finishing solution based on real production requirements.

Our team can assist with:

• Process development and testing
• Media and compound selection
• Equipment configuration
• Integration into existing finishing operations

Contact Kramer Industries to learn more about how the HBC Series Centrifugal Barrel Finishers can improve finishing efficiency and consistency in your operation.
