FPB Series Commercial Portable Abrasive Blasters
The DB Series is ideal for shorter cycle times and for those new to mass finishing. Two different sizes are available for large and small batch sizes. Economical and durable, the DB Series are one of our most popular vibratory tumblers.
The FPB Series Commercial Portable Abrasive Blasters are engineered for industrial surface preparation, coating removal, cleaning, and production blasting applications where reliability and productivity are critical. Designed for demanding field and shop environments, the FPB Series combines heavy-duty construction, high operating pressures, and complete blasting packages to deliver dependable performance across a wide range of abrasive blasting applications.
Available in 1.5, 3.5, and 6.5 cubic foot capacities, FPB Series systems utilize a Pressure Release (SPR) design that automatically depressurizes the vessel when blasting stops. This system design provides simple operation, reduced maintenance complexity, and dependable performance for both experienced operators and first-time blasting users.
Designed to operate at pressures up to 150 PSI, the FPB Series supports high-production abrasive blasting while maintaining consistent abrasive flow and operator control. These systems are compatible with a wide range of blasting abrasives including aluminum oxide, garnet, crushed glass, steel grit, glass bead, walnut shell, and other specialty media.
Heavy-Duty Construction for Industrial Blasting
The FPB Series is built using industrial-grade components designed to withstand continuous blasting environments. Heavy-wall piping, galvanized pipe assemblies, durable powder coated pressure vessels, and high-quality metering systems help ensure long service life and consistent operation in demanding applications.
Additional design features include:
- Full-port ball valves that help maximize airflow and blasting efficiency
- Moisture separator systems to help reduce contamination from wet compressed air
- Pneumatic remote control systems for operator safety and blasting control
- Durable wheel-mounted portable design for improved mobility around job sites
- Simplified maintenance access for faster service and reduced downtime
- High-flow abrasive metering systems for consistent media delivery
The Pressure Release system design also provides automatic vessel blow-down when the control handle is released, helping simplify operation and making the system well-suited for general industrial blasting applications, blast rooms, and contractor use.
Available Package Configurations
Starter Package
The Starter Package is designed for operators who already have some blasting accessories or want a solid entry-level industrial blasting system.
Includes:
- FPB Series portable abrasive blaster with pneumatic remote controls
- 55-foot twinline pneumatic control hose assembly
- Pneumatic deadman control handle for remote operation and safety
- Heavy-duty blast hose assembly with nozzle holder
- Tungsten carbide blast nozzle for long wear life and efficient abrasive flow
The Starter Package provides the core blasting equipment needed to begin production blasting operations while allowing flexibility for users who may already own safety equipment or air supply accessories.
Complete Package
The Complete Package expands on the Starter configuration by adding operator safety and respiratory equipment required for many industrial blasting environments.
Includes everything in the Starter Package, plus:
- Professional abrasive blasting respirator package
- Breathing air filter system
- Industrial blast suit for operator protection
- Double-palmed blast gloves for increased durability and hand protection
The Complete Package is ideal for fabrication shops, contractors, maintenance operations, and industrial facilities looking for a more complete blasting solution with operator protection equipment included.
Full Package
The Full Package is the most complete turnkey configuration available for the FPB Series and is designed to help operators get up and running quickly with minimal additional equipment requirements.
Includes everything in the Complete Package, plus:
- 50-foot compressed air supply hose assembly for connecting the blast pot to the air compressor
- 50-foot breathing air hose assembly and couplings for respirator air supply systems
The Full Package is an excellent option for mobile blasting contractors, field service crews, and facilities looking for a more complete abrasive blasting setup ready for production use.
Optional respirator upgrades are also available depending on operator preferences and application requirements.
FPB Series Model Lineup
FPB Series Model Lineup Specifications |
||||
|---|---|---|---|---|
Kramer Model |
Original Model |
Capacity |
System Type |
Available Packages |
FPB-1500 |
SPR-1.5 | 1.5 Cu. Ft. | Pressure Release (SPR) | Starter, Complete, Full |
FPB-3500 |
SPR-3.5 | 3.5 Cu. Ft. | Pressure Release (SPR) | Starter, Complete, Full |
FPB-6500 |
SPR-6.5 | 6.5 Cu. Ft. | Pressure Release (SPR) | Starter, Complete, Full |
Typical Applications
The FPB Series Portable Abrasive Blasters are commonly used for:
- Steel surface preparation
- Rust and corrosion removal
- Industrial maintenance blasting
- Powder coating preparation
- Structural steel cleaning
- Fabrication and weld cleaning
- Automotive restoration
- Marine maintenance and repair
- Concrete surface preparation
- General industrial cleaning and finishing
The versatility of the FPB Series allows operators to use aggressive cutting abrasives for heavy cleaning or softer specialty media for delicate substrate preparation and finishing applications.
Safety and Operator Protection
Proper blasting safety practices are essential in any abrasive blasting environment. Operators should always use approved respiratory protection, hearing protection, protective clothing, and properly maintained blasting equipment.
The FPB Series incorporates remote control systems, moisture separation, and controlled depressurization features designed to support safer and more efficient blasting operations. Routine inspection and maintenance procedures also help maximize equipment performance and operating life.
Built for Professional Blasting Operations
Whether used in a fabrication facility, industrial maintenance operation, or mobile field service application, the FPB Series Portable Abrasive Blasters deliver the durability, performance, and portability required for demanding abrasive blasting environments.

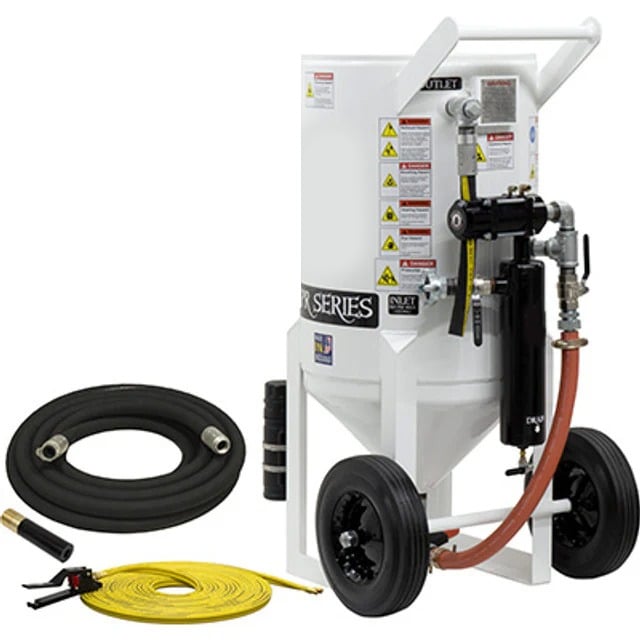

FPB-Starter-Package
FPB-1500

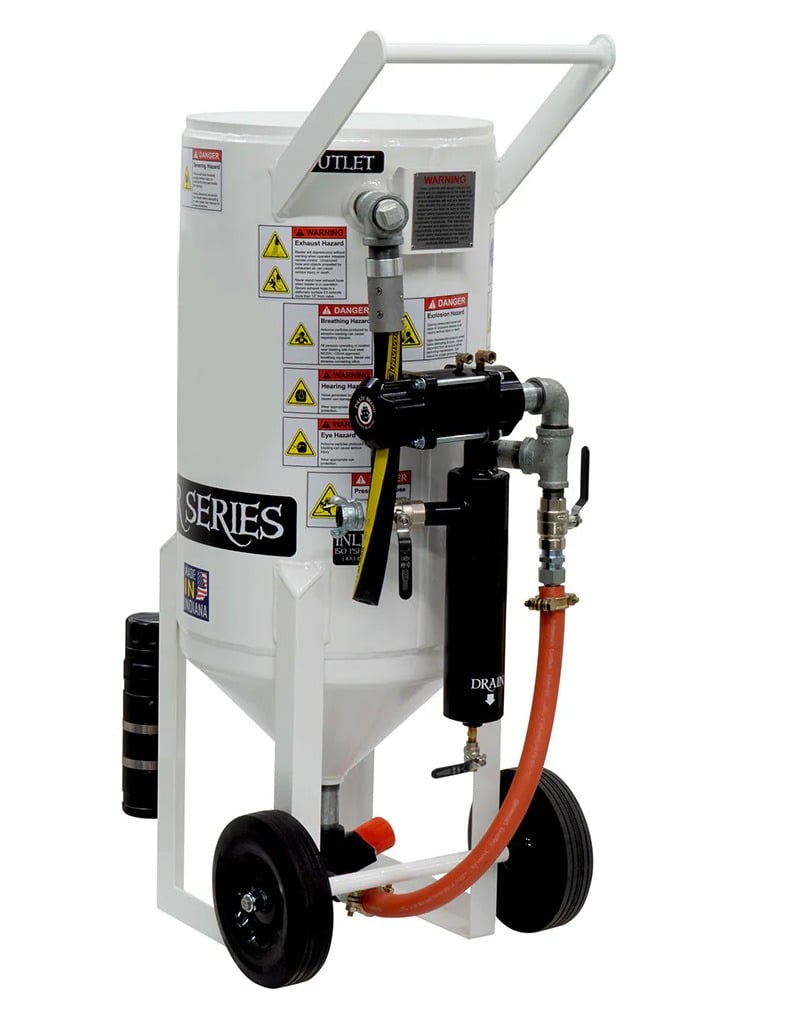

FPB-3500

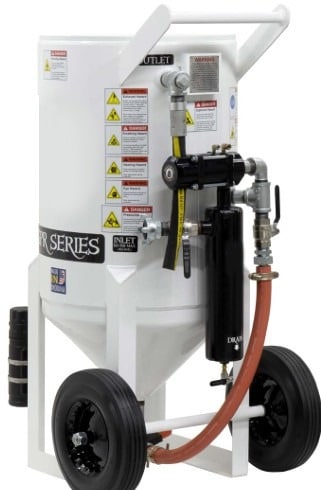

FPB-6500

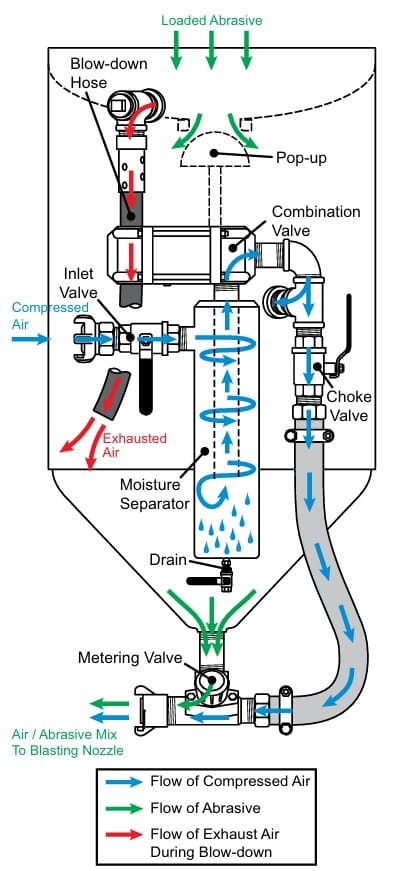

FPB-SPR-System-Flow

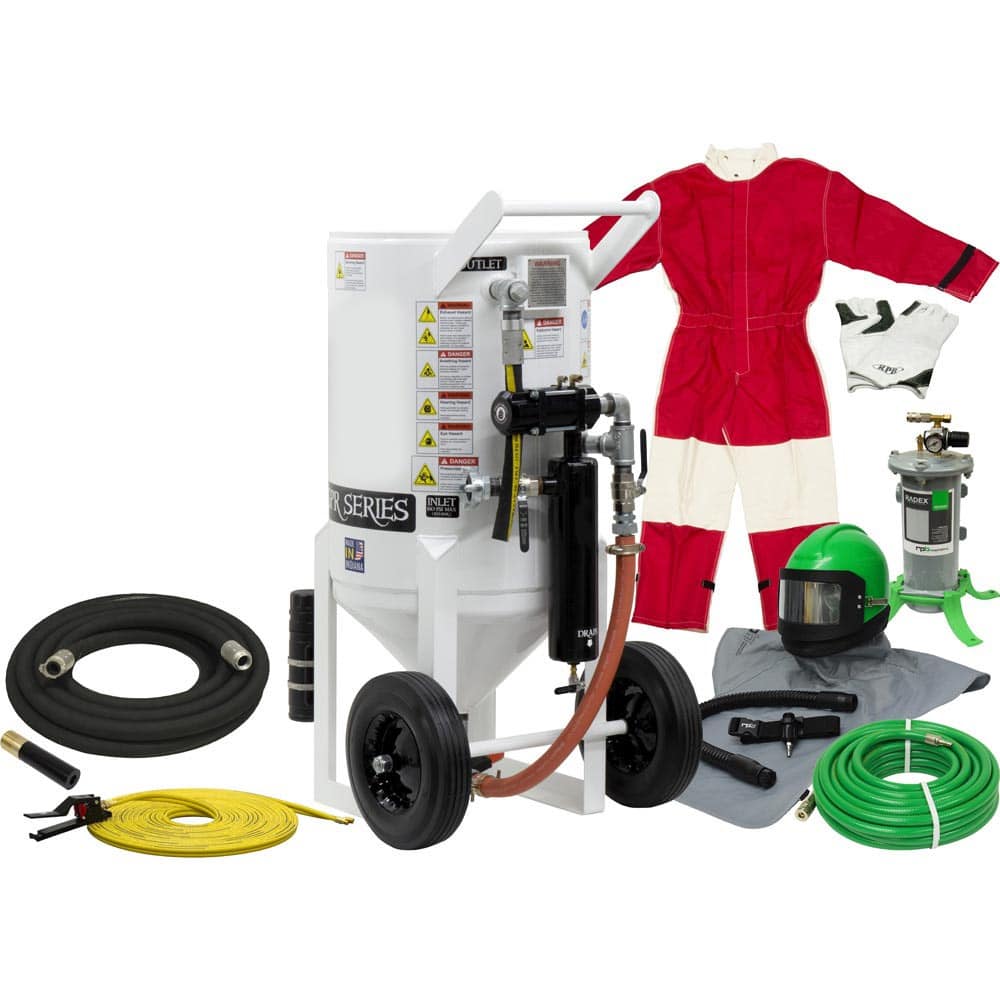

FPB-Complete-Package

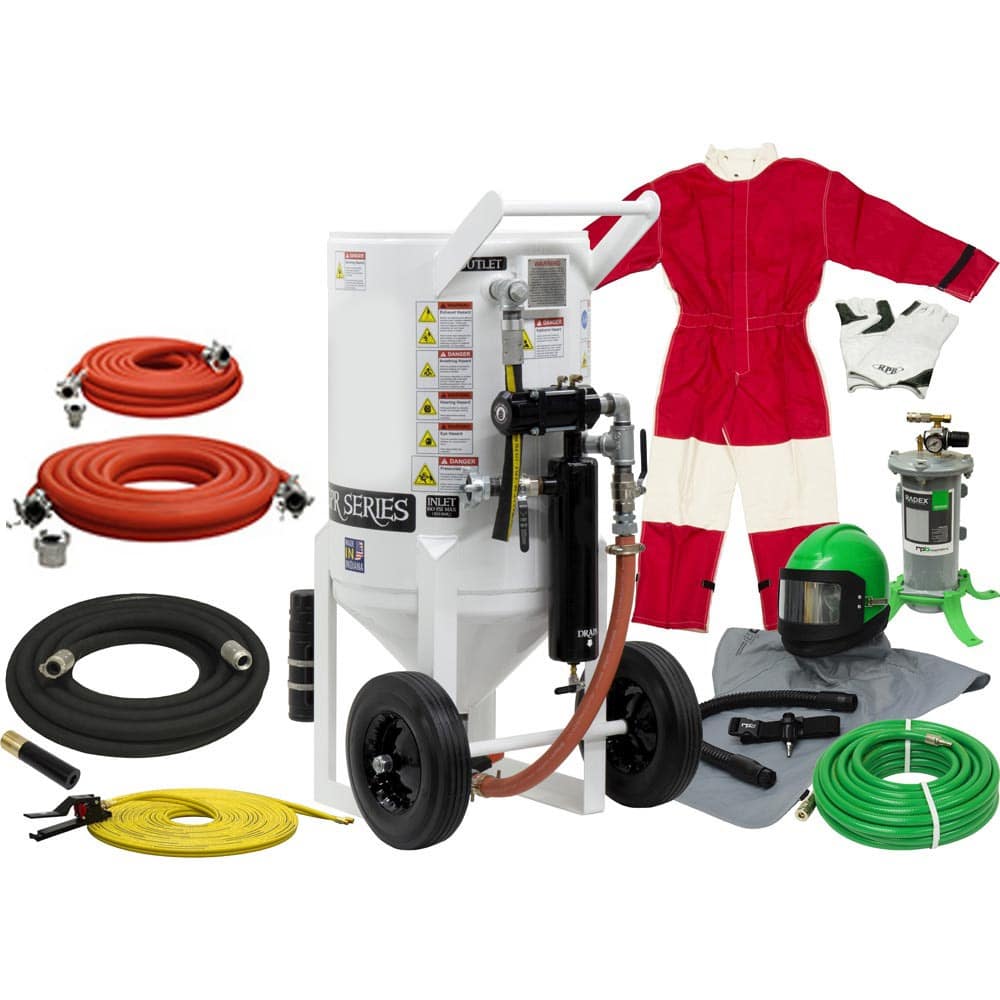

FPB-Full-Package
FPB-Starter-Package
