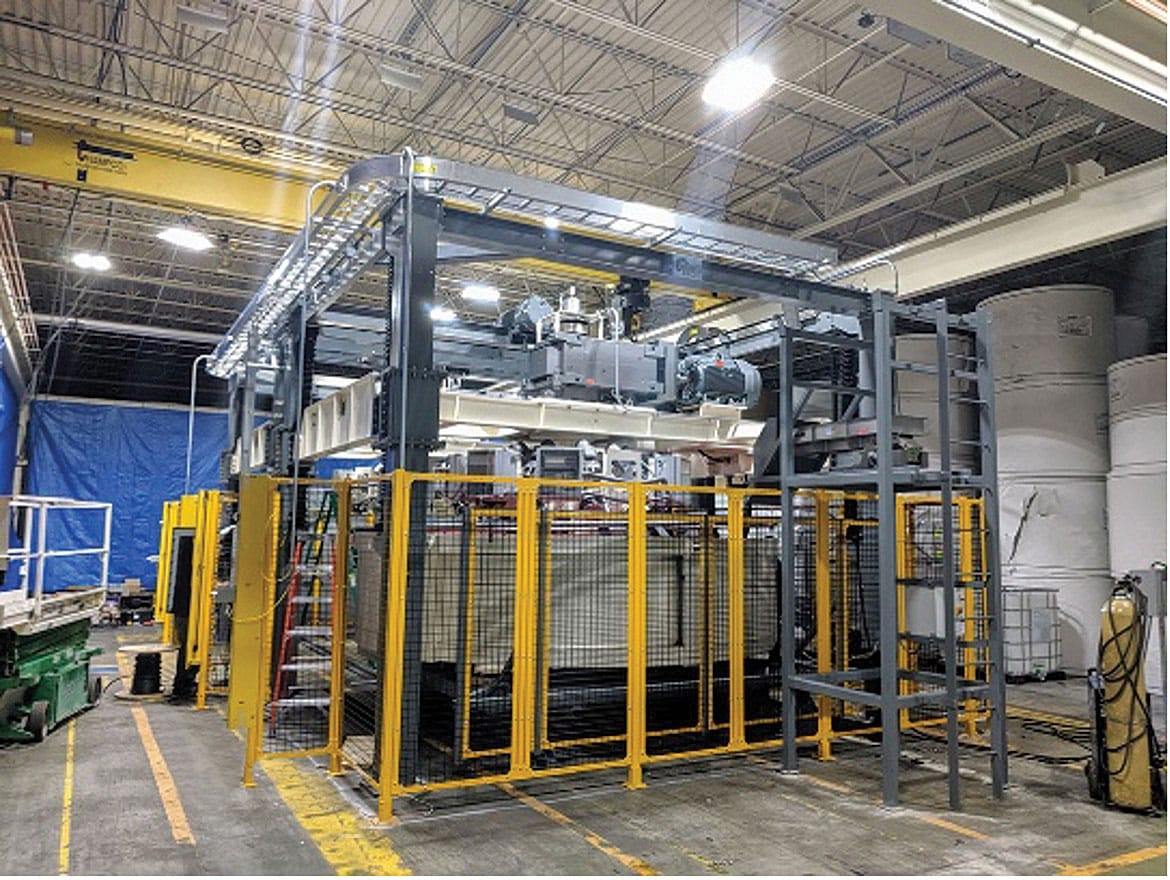

DFS Series – Drag Finishing Systems

High-Intensity Surface Finishing for Complex, High-Value Components

High-Intensity Surface Finishing for Complex, High-Value Components
When cycle time, surface integrity, and repeatability matter most, drag finishing delivers. Kramer Industries provides fully engineered drag finishing systems designed and built to order based on your exact part geometry, material, throughput, and finish requirements. As advanced automated finishing systems, these solutions are developed to integrate seamlessly into modern production environments.

Drag finishing is one of the most aggressive and efficient mass finishing processes available today. Compared to centrifugal barrel tumblers (CBF machines) and centrifugal disc finishers, drag finishers achieve significantly faster processing times while maintaining superior control over part quality. The result is reduced labor, improved consistency, and measurable operating cost savings. These Mass Finishing Systems are engineered to deliver consistent, repeatable surface finishing solutions across demanding applications.

How Drag Finishing Works

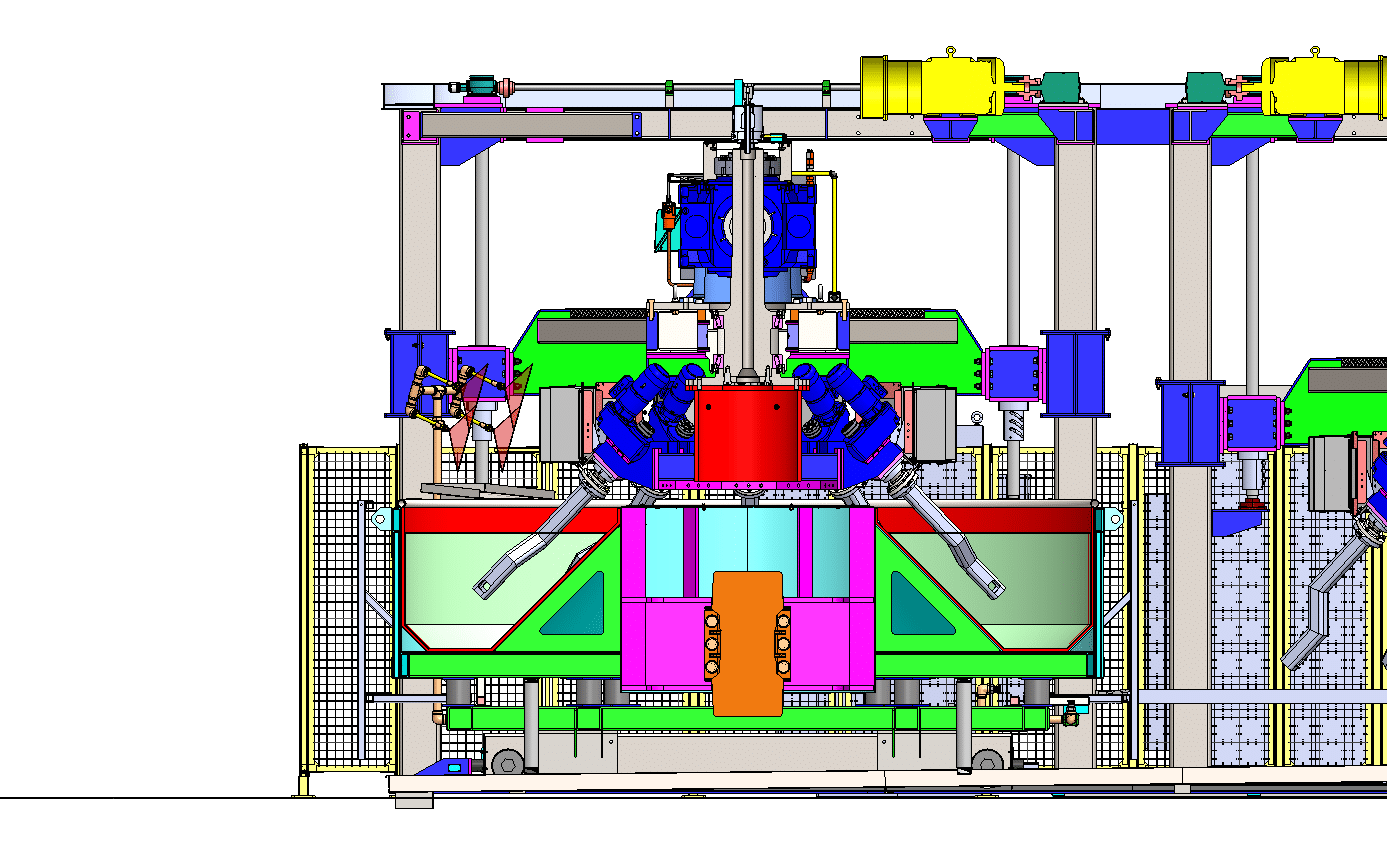

In a drag finishing system, parts are individually mounted to a rotating spindle equipped with multiple tool stations or arms. The spindle lowers the parts into a circular media bowl where they are dragged through grinding or polishing media at high speed.

This controlled, high-pressure motion creates extreme force at the part surface. The increased pressure and velocity enable high-speed material removal, edge radiusing, polishing, and surface refinement far beyond traditional vibratory or centrifugal systems. As industrial deburring equipment, drag finishing systems provide aggressive yet controlled finishing for precision components.

Because parts are individually fixtured, they never contact one another during processing. This eliminates part-on-part damage and ensures a consistent, repeatable finish from batch to batch.

Engineered for Tough Materials and Demanding Applications

Drag finishing is particularly effective for:

• High-alloy materials such as titanium and stainless steel
• Tool steels and hardened components
• Aerospace and orthopedic parts
• Marine components such as propellers
• Complex geometries requiring precise edge control

The high surface pressure generated during the process allows tough materials and high surface hardness components to be processed efficiently without sacrificing dimensional integrity. These surface finishing solutions are ideal for manufacturers seeking precision and durability in challenging materials.

Custom Built to Your Process

Unlike standard off-the-shelf equipment, Kramer drag finishing systems are designed around your specific application. There is no fixed model lineup. Each machine is configured to match:

• Part size and geometry
• Required throughput
• Surface finish specifications
• Media selection
• Automation level

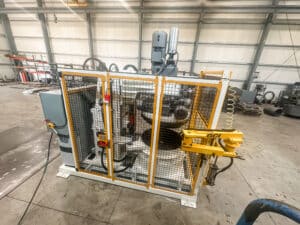

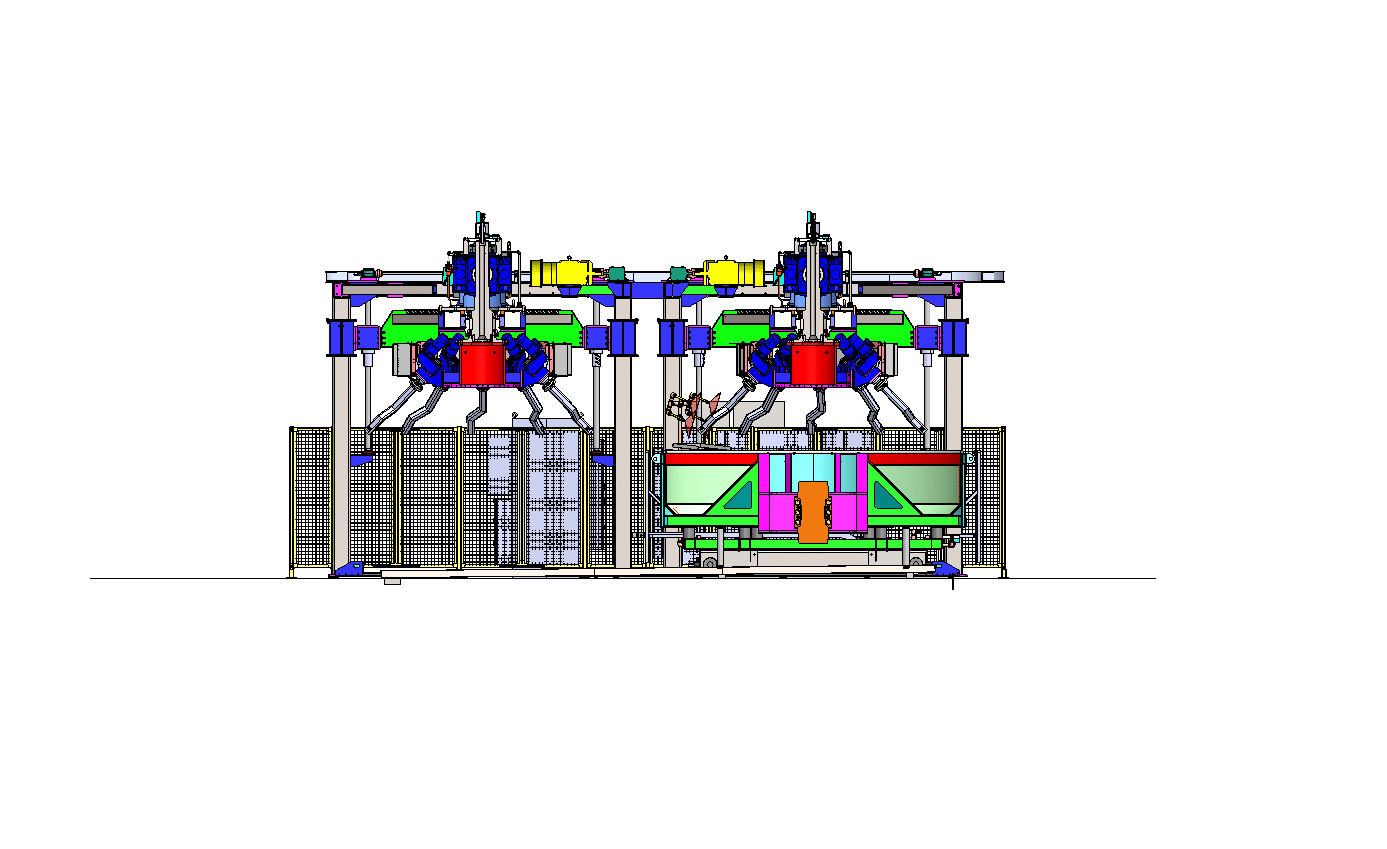

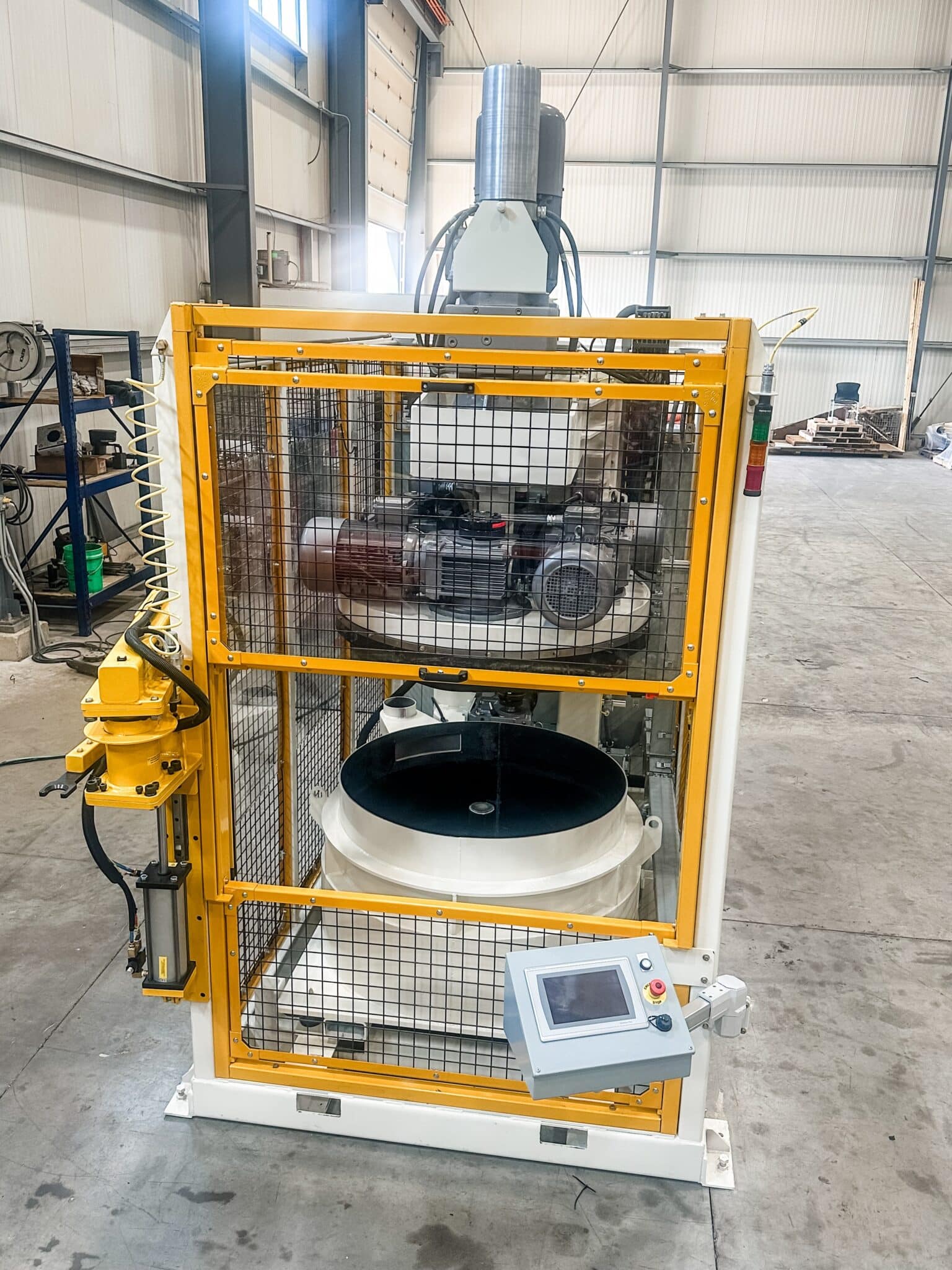

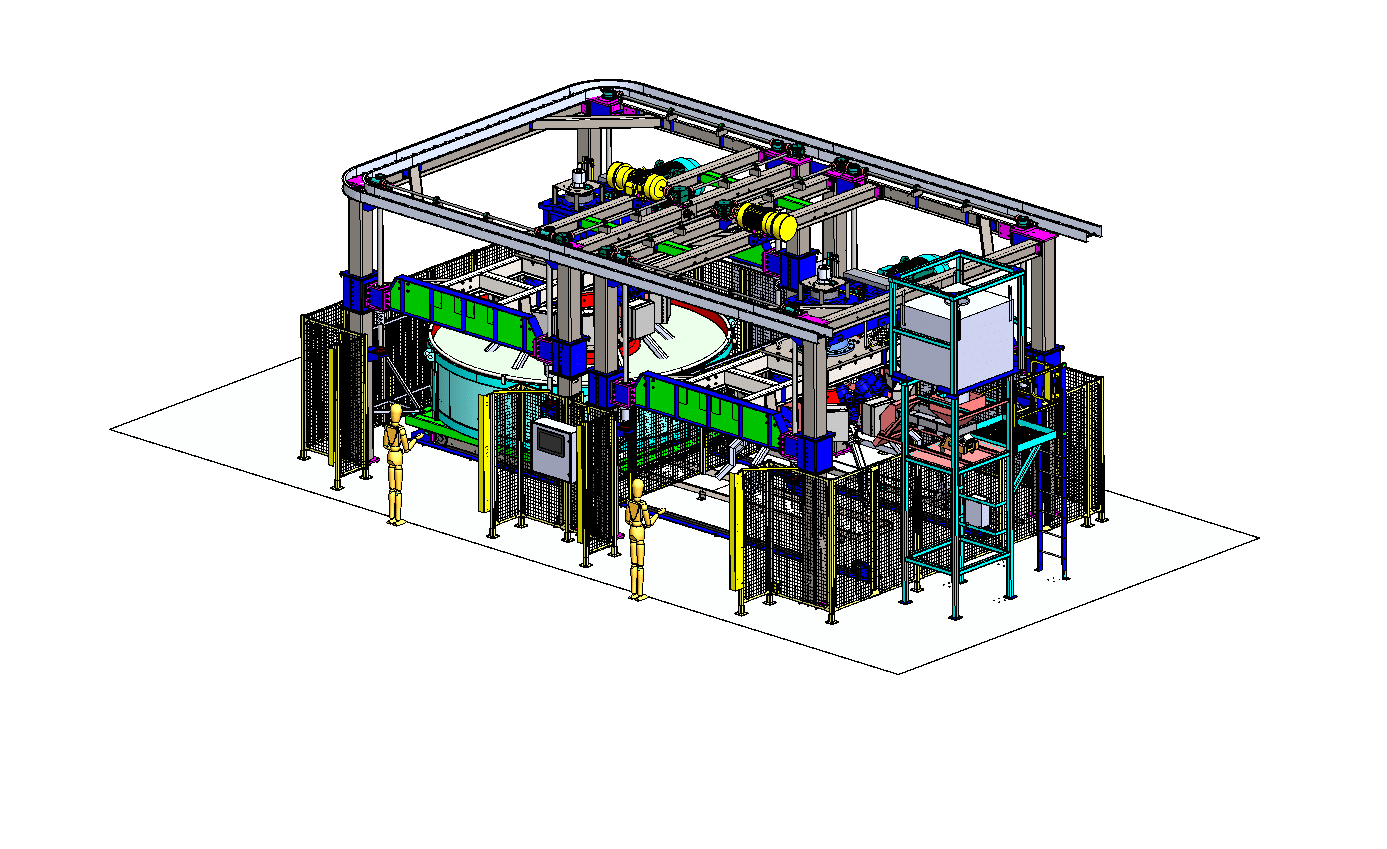

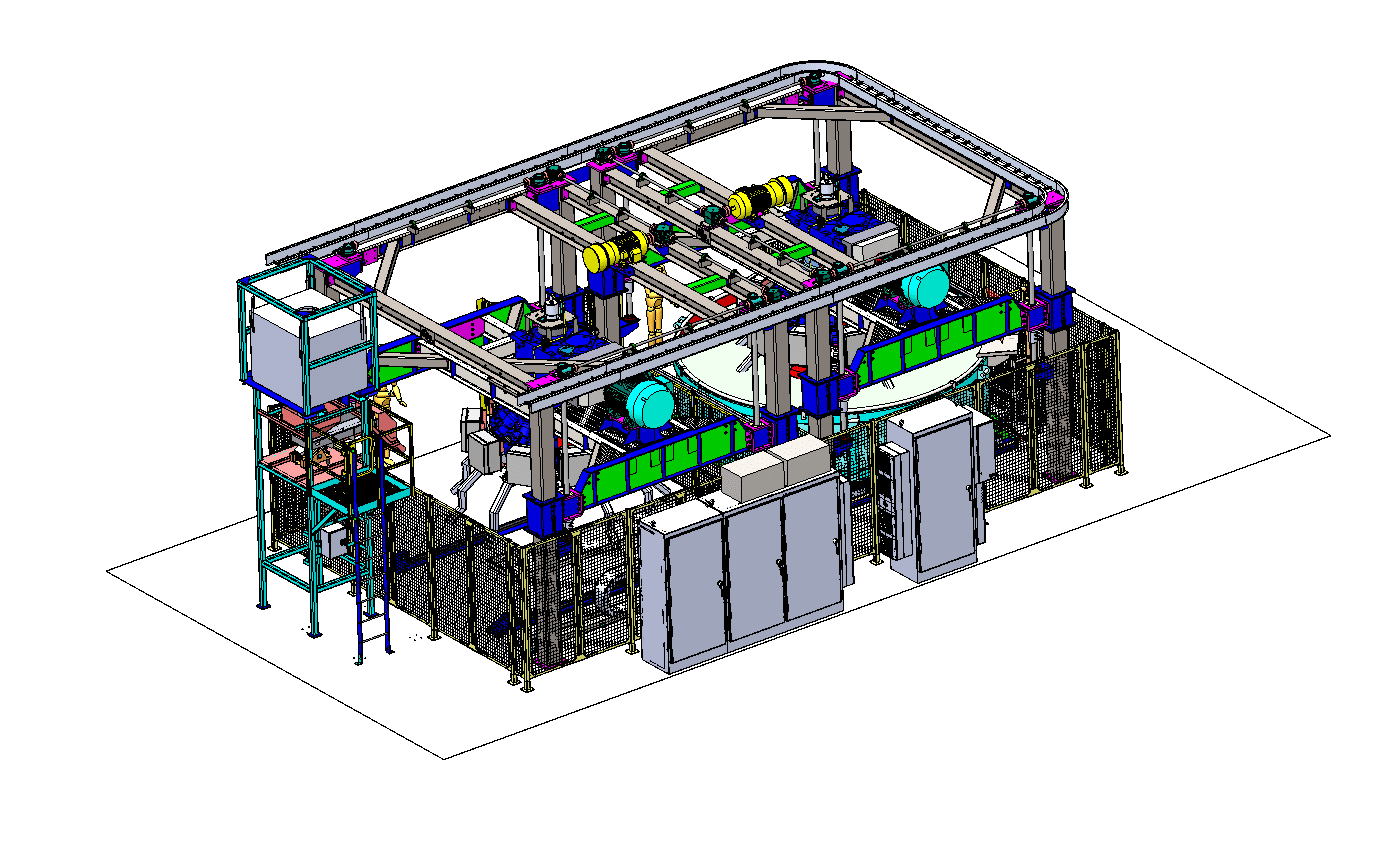

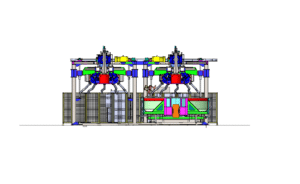

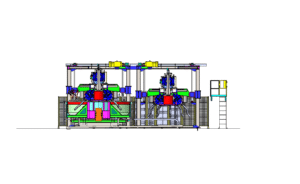

Systems are available in single- or multi-bowl configurations with customizable spindle arrangements. Larger systems typically incorporate 8 to 12 arms with bowl diameters ranging from 120 to 180 inches. Compact mini-drag systems are also available with 4 to 6 arms and bowl diameters in the 40 to 60 inch range for smaller parts or lower volume requirements.

Heavy-Duty Construction and Advanced Controls

Kramer drag finishers are built for industrial environments and continuous production:

• Heavy-duty carbon steel interlocking bowl weldment
• 360° stainless steel spray bar for uniform solution distribution
• Vibratory motor to fluidize media between runs and present fresh media to the process area
• Fully automated PLC controls with digital interfaces
• Variable speed drives for all major functions
• Integrated safety fencing with light curtains or zone sensors

These features ensure consistent process control, improved operator safety, and long-term reliability in demanding manufacturing environments. As automated finishing systems, they are designed to scale with production growth.

Why Drag Finishing Outperforms CBF and Disc Systems

For many high-precision applications, drag finishing can reduce cycle times dramatically compared to centrifugal barrel and centrifugal disc systems. The increased mechanical force applied directly to each part accelerates deburring and polishing while maintaining tight process control.

Key performance advantages include:

• Shorter cycle times
• More aggressive material removal when required
• Improved surface consistency
• Reduced manual finishing operations
• Lower labor input per finished part

In many cases, this industrial deburring equipment replaces manual grinding and hand polishing operations entirely, freeing skilled operators for higher-value tasks.

Reduced Process Time. Improved Quality. Labor Efficiencies.

By combining aggressive finishing action with engineered control, these Mass Finishing Systems help manufacturers achieve:

• Faster throughput
• Lower operating costs
• Improved surface repeatability
• Greater production scalability

From concept to commissioning, Kramer works closely with your team to design surface finishing solutions that integrate seamlessly into your production environment and deliver measurable results.

If you are evaluating alternatives to centrifugal barrel tumblers or centrifugal disc finishers, or looking to automate a labor-intensive deburring process, a custom-engineered drag finishing system may provide the performance advantage you need.
