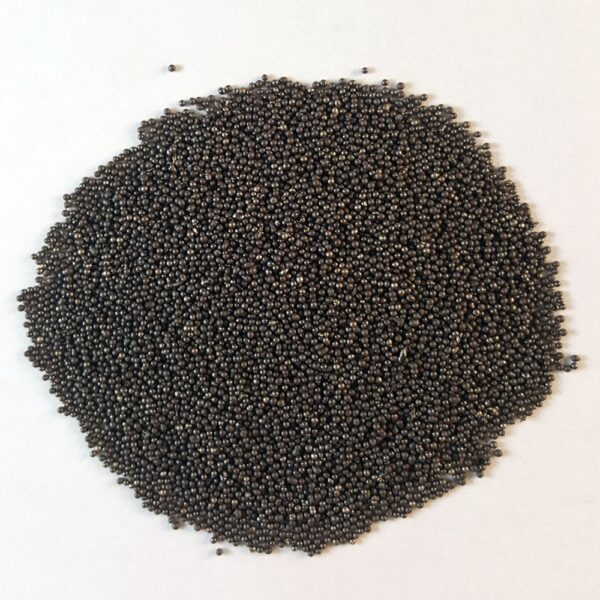

Steel Shot Blasting Media Abrasive
Steel Shot is ideal for peening applications to impart a clean, smooth finish. This dense, smooth media can be used up to 3,000 times and produces minimal dust during the blasting process.
Steel Shot Blasting Media Abrasive
Steel shot blasting abrasive is the most widely used process for cleaning, stripping and improving a metal surface. The grade or size of steel shot blasting abrasive will determine the ultimate finish achieved on the surface of the metal. The round ball shape of the steel shot produces a clean, smooth and polished surface through a peening action created by the acceleration of the shot. In a peening application, steel shot is also used to impart compressive strength to torque or load bearing metal parts such as crankshafts, engine turbine blades and heavy-duty springs.
Smaller steel shot blasting abrasive will result in a smoother and more polished surface. Larger shot will clean more aggressively but produce a rougher surface. Both air powered and wheel blast systems can be used to accelerate the steel shot onto the surface of the part. Due to the hardness and density of steel shot blasting abrasive, it can be recycled as much as 3000 times before replacement. Since steel shot does not use an abrasive process and a minimal amount of dust is created in the blasting process.
Benefits
- Extreme Durability
- Very High Recyclability
- Spherical in Shape
- Magnetic
- Used in Both Wheel Blasting and Pneumatic (Air) Blasting
- Multiple Hardnesses Available
- Very Low Dusting
Applications
- Shot Peening
- Surface Preparation
- Polishing
- Cleaning
Recycled, remanufactured, and cleaned Steel Shot is an economical and effective way to maintain performance and keep costs low. For more information on this product and recycling process click here.
Steel Shot Blasting
Steel Shot blasting is a technique used to perfect or clean steel when specific surface finishes are required. Steel shot is utilized in pretty much every industry imaginable. These incorporate massive construction, shipbuilding, rail, and auxiliary manufacturing.
Blast cleaning with steel shot is a vital operation at various stages of primary metal production. The different varieties and the size of the steel shot give an excellent result on the metal surface. It is one of the most cost-effective since it can be recycled hundreds if not thousands of times due to its robustness and durability.
A larger steel shot blasting cleans a rougher surface thoroughly. In order to accelerate steel shot on the surface, both wheel blast and air pneumatic systems are used.
Advantages of Steel Shot Blasting
- It provides an excellent result on the metal surface finish.
- Extremely high durability
- Cost-effective & recycle ability
- Both wheel blast systems and air power can be used
- Remove surface contamination and provide a spotless surface
Steel shot blasting produces the least dust because its process is less abrasive and the media does not break down. Steel shot is used to overcome condensate strength to torque or loading metal parts such as engine turbine blades, crankshafts, and heavy-duty spring.
Steel Shot Blasting is a surface finishing method that prevents metal fatigue or cracking as well as for cleaning and surface hardening. In this method, the role of a shot is to remove rust, impurities, surface contamination, or other remains that can affect metal strength. It is environmental-friendly and a rapid, cost-effective surface finishing method that is used for cleaning, polishing metal, and other surfaces by applying a high-speed stream of round shot media.
Steel Shot Blasting also has multiple uses wherein it can remove hard scrapes, scales, and burrs, and is an excellent rust remover. Since it does effectively clean surface corrosion that may interfere with the part’s integrity, blasting becomes a reliable approach to surface treatment.
Steel Shot Sizes And Finishes
Steel Shot Specifications |
|||
|---|---|---|---|
Shot Grade |
Approximate Size |
Finish |
Applications |
| S-070 | 0.007" | Fine, smooth shot finish. Excellent coverage. | Blasting of relatively small ferrous and non-ferrous castings. Removal of light scale from foreign and heat treated parts. Blasting of machined parts. Removal of mill scale, rust and other deposits. |
| S-110 | 0.011" | ||
| S-170 | 0.017" | ||
| S-230 | 0.023" | Medium, light shot finish. Good coverage. | Blasting of grey iron, malleable iron, light steel castings, medium forgings, heat-treated parts and heavy mill scale - rust and other deposits. |
| S-280 | 0.028" | ||
| S-330 | 0.033" | ||
| S-390 | 0.039" | Average to heavy shot finish. Average coverage. | Blasting of steel, heavy malleable iron and grey iron castings. Removal of scale from large billets, slabs - rust and other deposits. |
| S-460 | 0.046" | ||
| S-550 | 0.055" | ||
| S-660 | 0.066" | Rough coverage. Adequate for most applications. | Heavy steel castings. Removal of tough, heavy scale. |
| S-780 | 0.078" | ||
Steel Shot Specifications |
||
|---|---|---|
Size |
All material is screened to meet or exceed SAE and SFS specifications. | |
Chemistry |
Carbon: 0.80 - 1.20% Sulfur: < 0.05% Phosphorous: < 0.05% | |
Minimum Density |
7.0 g/cc (430 lbs/ft3) | |
Bulk Density |
230 - 260 lbs/ft3 | |
Hardness |
STD: 45-49 HRC (Standard) | Available by Special Order* SP: 40-51 HRC SB: 47-56 HRC SL: 54-61 HRC SH: 60+ HRC |
Spec Sheet |
 |
|
Frequently Asked Questions (FAQs)
Q1. What is steel shot abrasive?
Steel shot is a round, spherical abrasive media made from high-carbon steel. It is commonly used in blasting and peening applications to clean, strengthen, or polish metal surfaces.
Q2. What are the main uses of steel shot?
Steel shot is ideal for:
- Cleaning foundry castings and metal parts
- Shot peening to improve fatigue strength of components
- Removing rust, scale, or paint from steel surfaces
- Preparing surfaces for coating or painting
Q3. How does steel shot differ from steel grit?
- Steel Shot: Spherical, provides smoother finishes, ideal for peening and polishing.
- Steel Grit: Angular, offers a rougher profile, ideal for fast surface cleaning and preparation.
Q4. What are the benefits of using steel shot?
- Consistent surface finish
- Low dust generation
- Long-lasting and cost-effective over time
- Enhances metal fatigue life via shot peening
Q5. What sizes are available for steel shot abrasives?
Steel shot is available in a wide range of SAE sizes (e.g., S-70 to S-780), depending on the desired finish and application.
